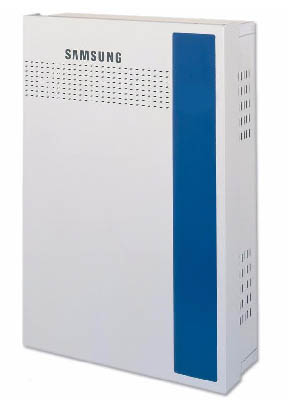

Samsung OfficeServ 100 KSU
The OS 100 Key Service Unit is a metal cabinet containing the following: One Page Output One MOH/BGM input source (switch selectable between internal chimes and external input) 8 2B+D Digital Keyset digital phone Interfaces Processing, switching and power management Power Supply (120 VAC) with a battery backup (48 VDC) connection The OS 100 KSU comes configured with 0 trunks and 8 2B+D DLI telephone station Ports There are two types of expansion cabinets available for the OS 100. The cabinet is attached to the right of the basic KSU and connects via a ribbon cable and two 2 pairs of wires.
Samsung OfficServ 2/2 Slot Expansion Cabinet Type B
Samsung OfficServ 2/2 Slot Expansion Cabinet Type B 2 Dedicated slots for T1/PRI and the SVMi-8E Voice Mail card. 2 Universal Slots that support any combination of station or trunk cards.
Samsung OfficServ 100 3/1 Slot Expansion Cabinet Type A
Samsung OfficServ 100 3/1 Slot Expansion Cabinet Type A has 3 Universal Slots that support any combination of station, trunk or SVMi-4E Voice Mail cards. 1 Dedicated slot for T1/PRI or the SVMi-8E Voice Mail card. Only one of these cards can be installed.
